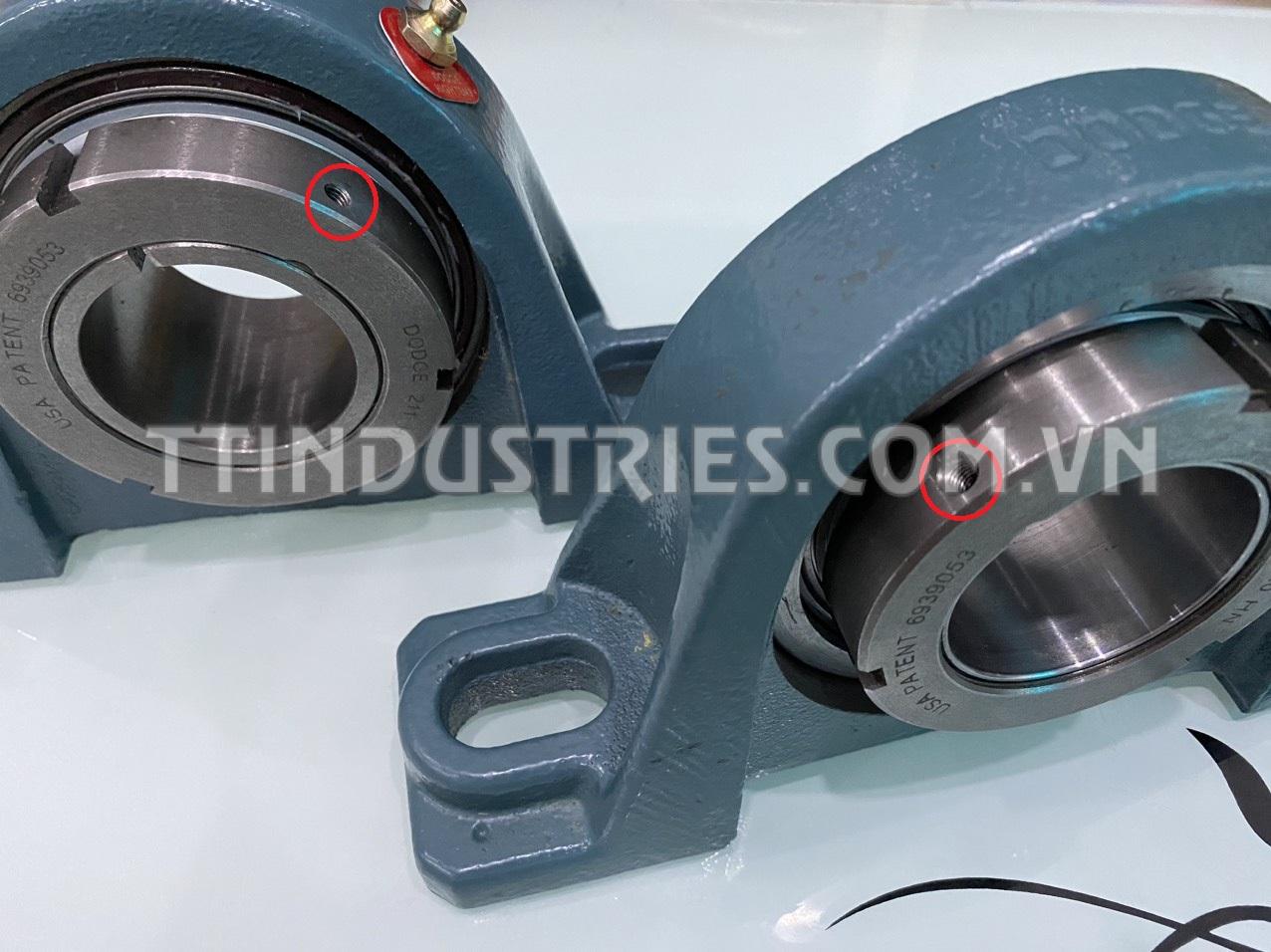

Bạc đạn Dodge P2B-GTM-115-HT

Duty                    Medium duty

Relubrication     Yes

Finish                  Uncoated

Bore length       1.9300 in, 49.022 mm

Insert type         Ball Bearing

Rolling element   Medium duty ball

Material               Steel

Locking                  Grip tight

Housing option     Cast iron

Expansion               No

Housing material    Cast iron

Application              General Purpose

Max RPM                  6700 rpm

Insert option             Bearing steel

Seal                             Single lip

Seal option                DualGuard seals with flingers

Bore                           1 15/16 in

I.D.                               1 15/16 in

Type                             Pillow block 2-Bolt

High temp                   No

Housing construction    Solid

Greasable                       Yes

Shaft diameter                   1.9375 in

Shaft attachment             Push-pull adapter

Expansion capability           Non-expansion (fixed)

Bolt to bolt min                   6.3800 in, 162.052 mm

Bolt to bolt max                   7.4400 in, 188.976 mm

Bearing type                          Ball, ball

Base to center height            2.5000 in, 63.5 mm

Take-up frame size                LD-40, TS-300

Housing type                          Two-bolt pillow block

Lubrication type                     Grease

Suitable for washdown          No

Sensor ready                             Adapter required

Insert material                          Steel

Standoff housing                      No

Suitable for high temperature     No
