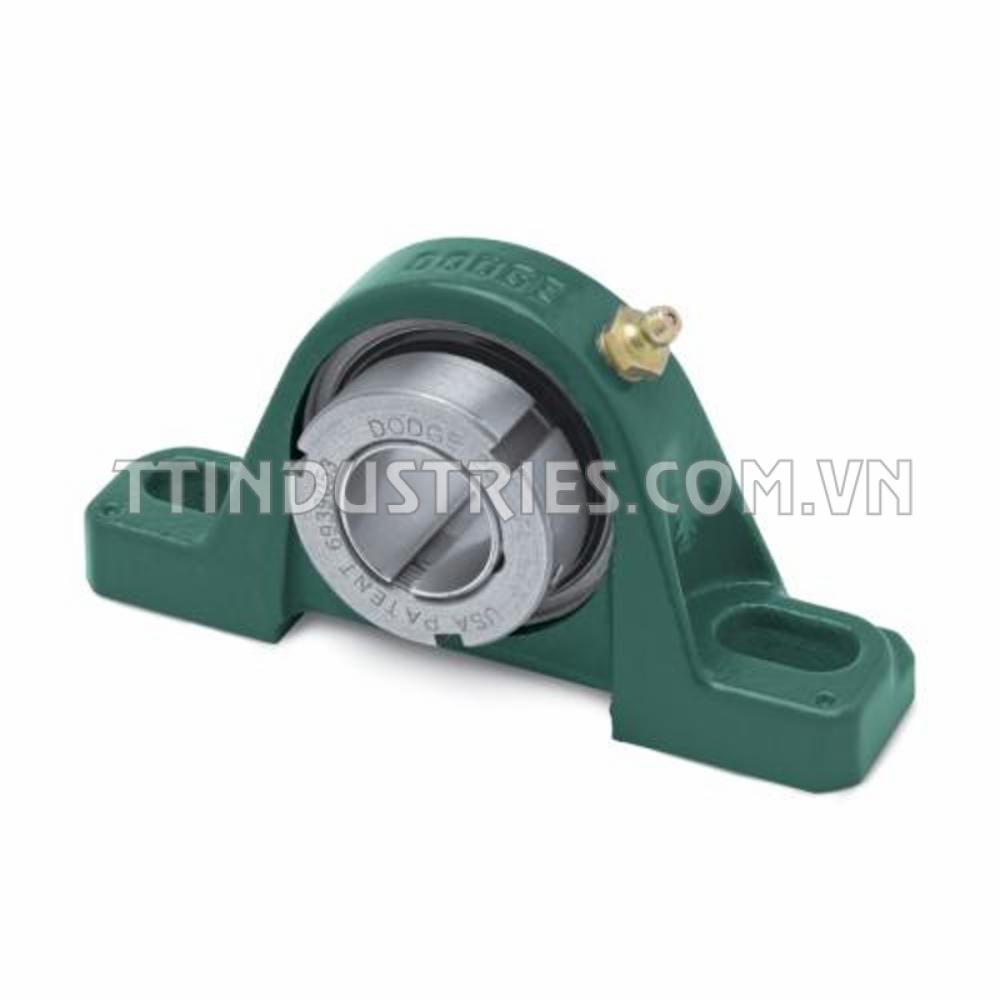

Bạc đạn DODGE – P2B-GTH-115-EHT

Item Specifications

• Base to Bore Centerline                2-1/2 in
• Base Width                3 in
• Bolt Center-to-Center Length 38 to 7.44 in
• Bore Diameter 1-15/16 in
• Bore Type Round
• Expansion Type Expansion Bearing
• Load Capacity                          7891 lb Dynamic/5213 lb Static
• Locking Device Grip-Tight®
• Locking Device Adapter Mounted
• Material Cast Iron
• Maximum Speed 7500 rpm
• Mounting Type Two Bolt Base
• Overall Height     96 in
• Overall Length 88 in
• Overall Width 86 in
• Seal Type Shield
• Series 210
• Temperature Rating   225 to 400 deg F
• Type Normal Duty
• Item Weight 40 lbs per EA
